24mm Diameter Permanent Magnet Stepper Motor with Gearbox 385mA Current 5v 12v 24v Voltage

Name: 24mm Diameter Permanent Magnet Stepper Motor with Gearbox 385mA Current 5v 12v 24v Voltage
Brand: VIC-TECH
Price: 0.68 USD

China 24mm Diameter Permanent Magnet Stepper Motor with Gearbox 385mA Current 5v 12v 24v Voltage wholesale

Model Number : 24BYJ48-

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 5

Price : $0.68-3

Phase : 2

Current per Phase : 385mA

Resistance : 18~300Ω

Pull-in torque : ≥98mN*m

Detent Torque : ≥29.4mN*m

Unload pull-in Frequency : ≥500PPS

Step angle : 5.625°/64

Gear ratio : 16:1~85:1

Motor diameter : 24mm

Rated voltage : 12V

Resistance at 25℃ : 70Ω

Reduction ratio : 1/32

No-load pull frequency : ≥800HZ

Temperature rise : ≤60K

Noise level : ≤45dB(A)

Contact Now

Product Description

24mm Diameter Permanent Magnet Stepper Motor with Gearbox 385mA Current 5v 12v 24v Voltage

This product is mainly used for sanitary ware, thermostatic valves, hot water faucets, automatic adjustment of water temperature At the same time, other areas that require precise control can be achieved. Due to the realization of open-loop control, low-cost position control is realized. It is applied to the precise control of gas valves, water purifier valves, instruments and other automatic control fields. At the same time, the external wiring part can adopt various types and lengths of connecting wires, or FPC FFC according to The output part can be used in a variety of ways, such as gears, pulleys, V-grooves, and turbo screws. The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!

Our products can be customised with the following parameters.

Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable

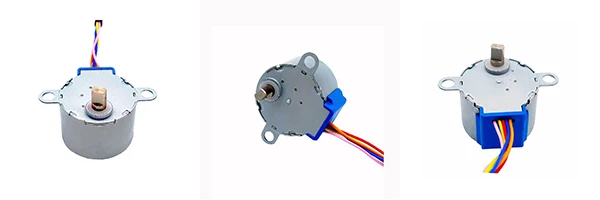

Product: picture:

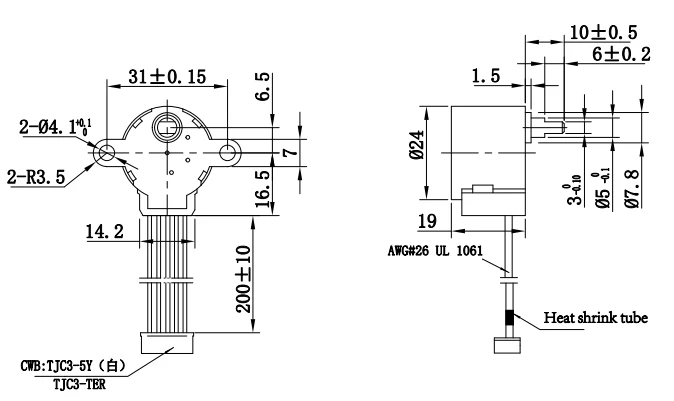

Design Layout (Unit:mm)

Specification

Motor diameter	24mm
Rated voltage	12V
Resistance (25℃) Ω phase ±8%	70Ω
Step Angle	11.25°/32
Reduction ratio	1/32
Pull-in torque	≥58.8mN.m
Custom torque	≥29mN.m
No-load pull-in frequency	≥500HZ
No-load pull frequency	≥800HZ
Insulation resistance DC.500v	≥10
nsulation dielectric strength	No breakdown or flying fox
Temperature rise 400HZ 3 min	≤60K
noise	≤45dB(A)

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Company Profile

Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers. We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(35.00%),North America(25.00%),Northern Europe(20.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stepper motor,linear motor,geared motor,micro motor,BLDC motor

4. why should you buy from us not from other suppliers?
Vic-Tech Motor has been specializing in producing micro motors since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.We provide customers with design and development custom services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
